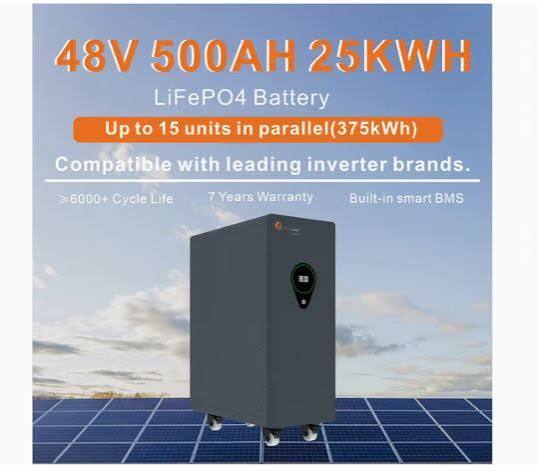

Name: 48V 500AH 25KWH BATTERY (CLASS A) 200A
SKU: 3331
Availability: InStock

48V 500AH 25KWH BATTERY (CLASS A) 200A

Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

Cell Build Quality: Grade A (Class A) high-density prismatic cells

Nominal Voltage: 48 Volts (Standard operating voltage 51.2V)

Storage Capacity: 500 Ampere-hours (Ah) / 25,000 Watt-hours (25kWh)

Continuous Charge Current: 200 Amperes maximum recommended configuration

Continuous Discharge Current: 200 Amperes maximum sustained threshold

Peak Discharge Current: 300 Amperes burst safety limit for 15 seconds

Recommended Discharge Power: Under 10,000 Watts continuous load

Maximum Charging Voltage: 57.6 Volts direct current

Lower Discharge Cutoff: 48.0 Volts automated system protection drop

Operational Cycle Life: Over 6000 continuous cycles at 80% Depth of Discharge (DoD)

Roundtrip System Efficiency: Up to 98% energy retention during conversion

Battery Protection System: Smart integrated BMS monitoring voltage, current, and cell balance

Hardware Safety Layers: Built-in physical circuit breaker, heavy-duty fuse, and internal aerosol fire suppression

Data Communication Ports: Industrial CAN bus, RS485 interfaces, and Bluetooth synchronization

Visual Interface Layout: Integrated dual digital LCD screen and multi-stage status LED panels

Scalability Options: Supports parallel expansion up to 15 matching modules for larger storage capacity

Thermal Operating Range: Charging restricted between 0°C to 55°C, discharging operational from -20°C to 60°C

Category: SOLARS

The 48V 500Ah 25kWh Lithium Iron Phosphate (LiFePO4) Battery is a high-capacity, industrial-grade energy storage bank designed for heavy-duty residential solar, large commercial backup systems, agricultural operations, and off-grid facilities. Constructed with premium Class A (Grade A) high-density prismatic cells, this storage unit offers superior chemical stability, absolute resistance to thermal runaway, and minimal capacity fade compared to lower-grade alternatives. The system is managed by an integrated smart Battery Management System that regulates energy distribution and balances cell voltages, safely limiting continuous charge and discharge parameters to a highly efficient 200A threshold while enabling a brief 300A burst tolerance for demanding inductive startup loads. Engineered for supreme longevity, it delivers several thousand complete deep-charge cycles down to an eighty percent depth of discharge, ensuring a operational lifespan exceeding ten years of daily peak-shaving use. The unit is designed with extensive inverter compatibility profiles, dual LCD and LED visual tracking dashboards, internal aerosol fire-extinguishing safety containment, and multi-unit parallel expansion capabilities, making it a reliable and scalable foundation for substantial off-grid or hybrid power stations.
